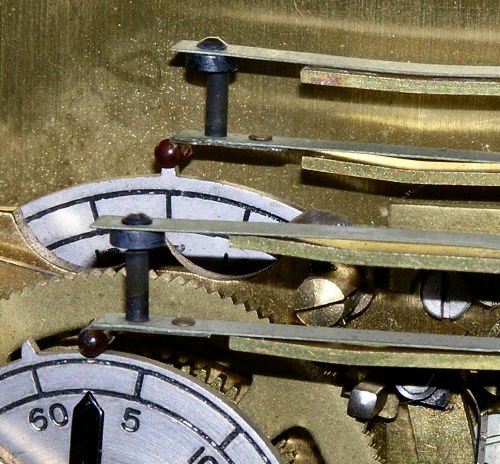

	Synchronome Programmer (Clock 70A) page 3 The cams above both rotate in an anti clockwise direction once the driving magnet receives a pulse that lasts between 200-400 millisecs. The cam for the once a day pulse, the rear one, has lifted the spring set and is giving a pulse at this stage. This pulse, according to the specifications, should last for "a few minutes before and after 1 o'clock PM". Whilst the hourly pulse cam, the front one, has already given a pulse 2.5 minutes ago, on the hour. The numbers on the cam corresponding to the time.	Custom Search My Other Websites: Synchronome Introduction Operation Setting Up Impulse Movement Rating Date Chart Barometer Pressure Door Open Effect Circular Error Door Open Effect Power Station Model Synchronome Literature Gents Pul-syn-etic Introduction Movement Operation Wheel Operation Impulse Slave 30 Minute Pulses Instruction Manuel Gensign Introduction The Movement (Overall) The Movement (Front) The Movement (Rear) Rear Flywheel & Spring Post Office 36 Introduction Toggle Operation The Countwheel Mechanism Clock 'As Found' Carl Bohmeier Introduction Escapement Movement Pendulum and Case Winding Mechanism Bürk Master Clock Introduction General Tele's Ltd Introduction Page 2 Slave Dials Introduction Synchronome Slave Octagonal Slave Programmer Introduction Close Up 1 Close Up 2 Links and Contact Page Links
